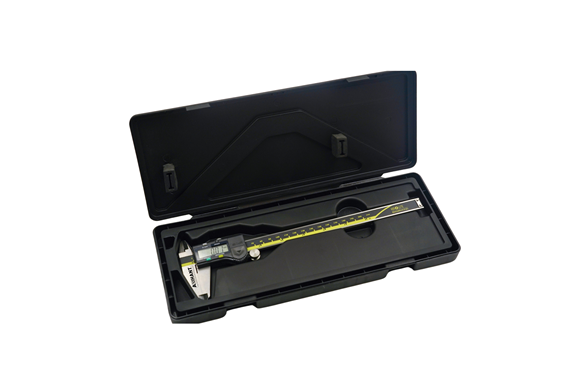

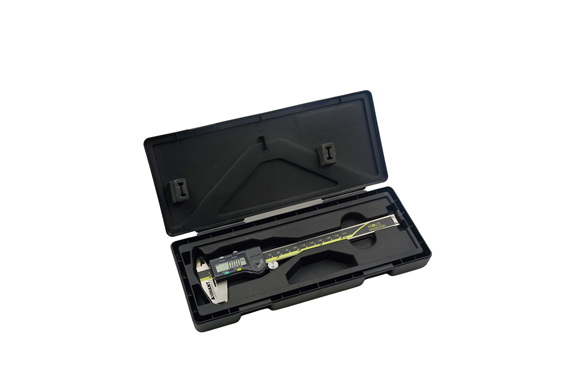

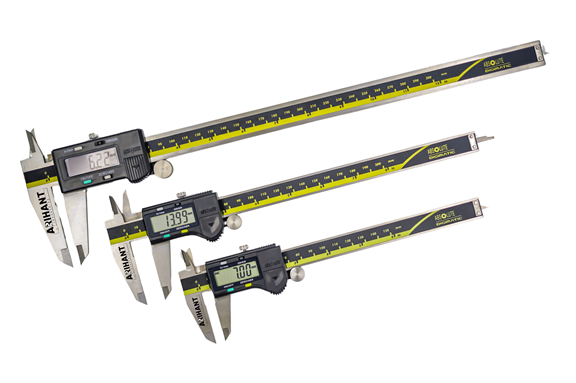

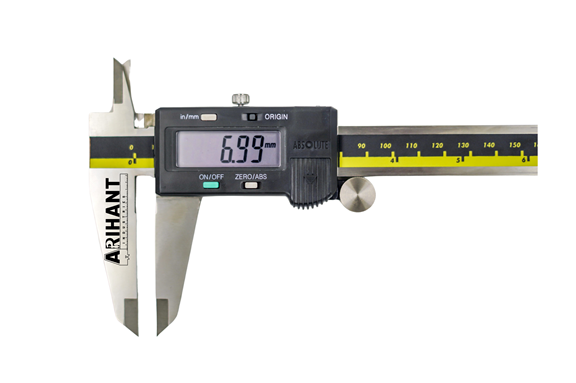

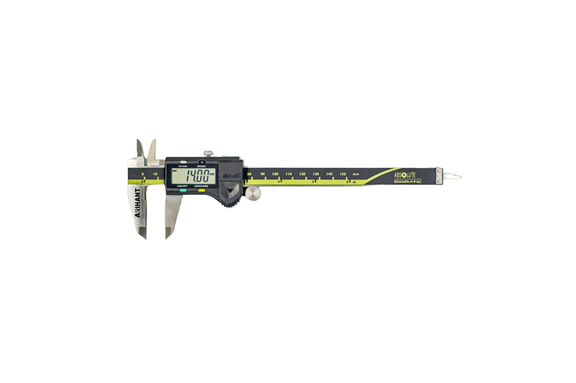

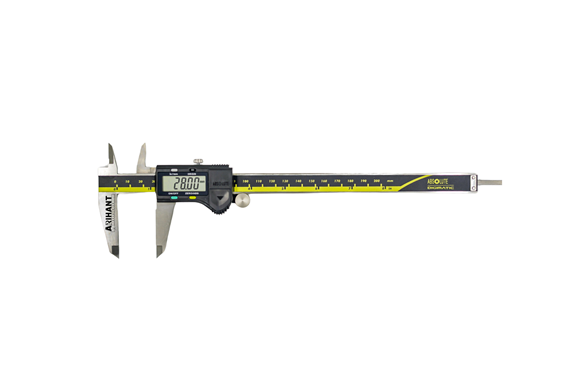

Digital Vernier Caliper

• New ergonomic design with finger rest.
• Large and clear LCD readout.
• Smooth slider movement makes for comfortable operation.
• 18000 hours battery life. Allows step measurements.

MAKE MODEL RANGE ACCURACY L.C/RESOLUTION
Arihant Industries AI-DVC150C 0-150 +/- 0.02 mm 0.01mm/0.0005”
Arihant Industries AI-DVC200C 0-200 +/- 0.02 mm 0.01mm/0.0005”
Arihant Industries AI-DVC300C 0-300 +/- 0.03 mm 0.01mm/0.0005”

Other Size and Type Available on Request.

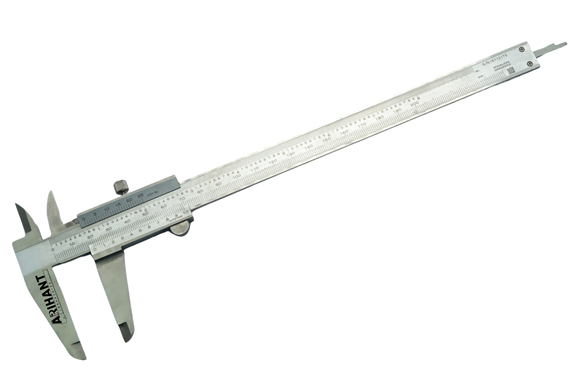

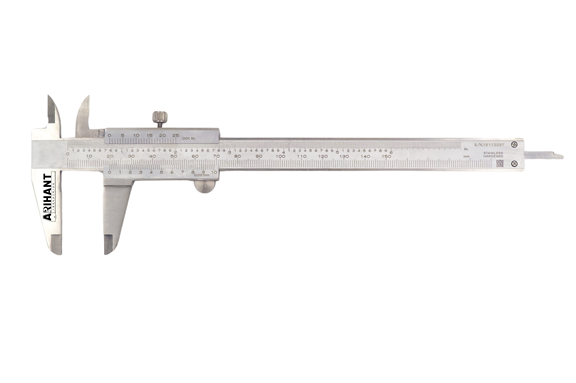

Vernier Caliper without Fine Adjustment

• New ergonomic design with finger rest.
• Plain and basic design.
• Stepped graduation face prevents dust ingress between the main scale and slider.
• Can measure outside and inside dimensions, depth and steps.
• Carbide-tipped jaw calipers are optional for rough finished parts, casting, grinding stones, etc.

MAKE MODEL RANGE ACCURACY L.C/RESOLUTION
Arihant Industries AI-VC150 0-150 +/- 0.05 mm 0.02mm/0.001”
Arihant Industries AI-VC200 0-200 +/- 0.05 mm 0.02mm/0.001”
Arihant Industries AI-VC300 0-300 +/- 0.08 mm 0.02mm/0.001”

Other Size and Type Available on Request.

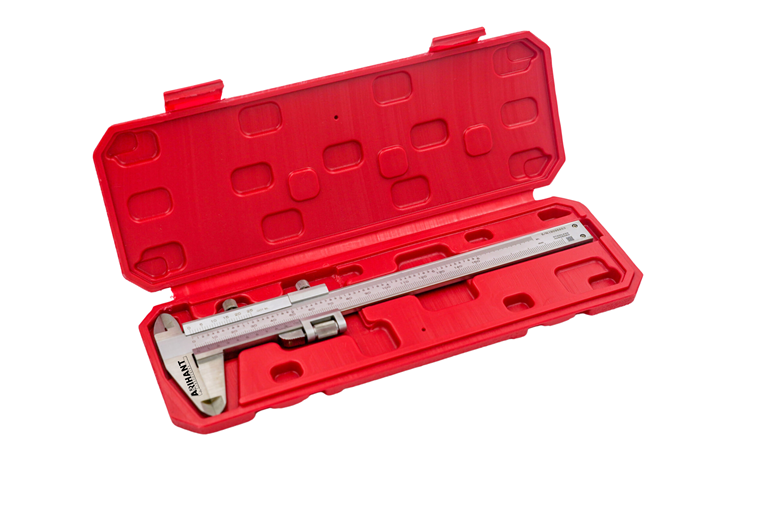

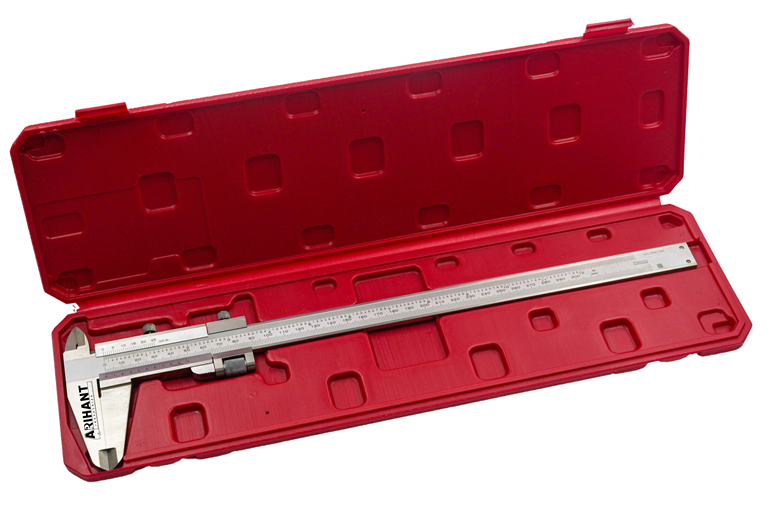

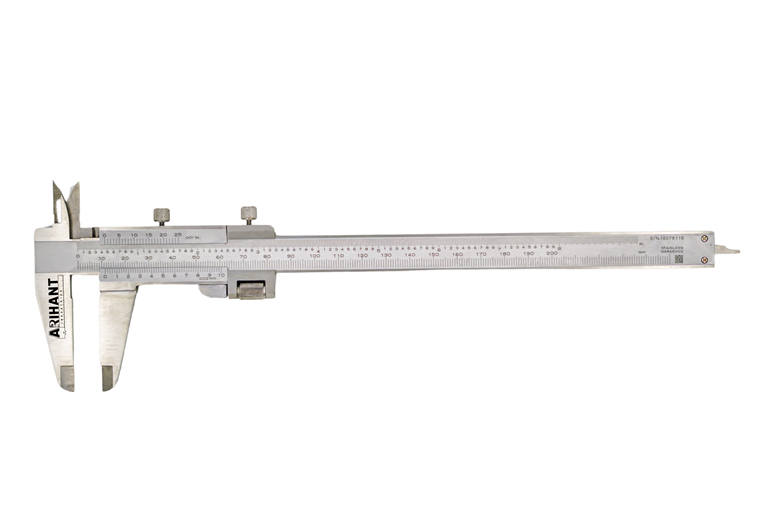

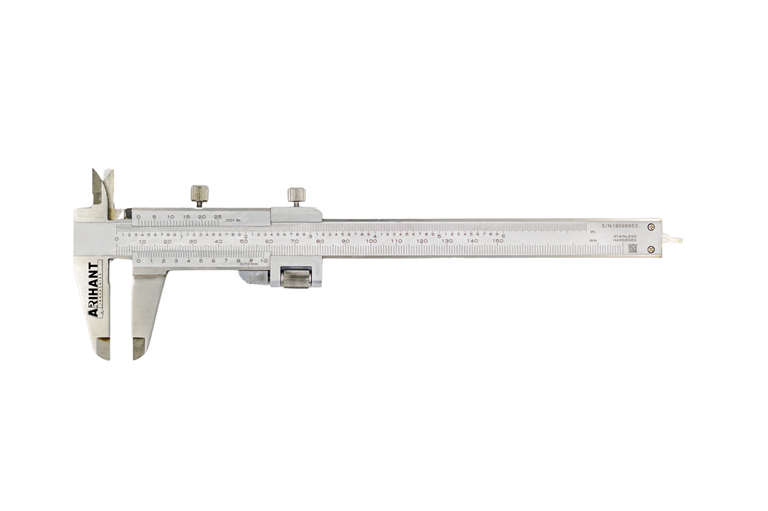

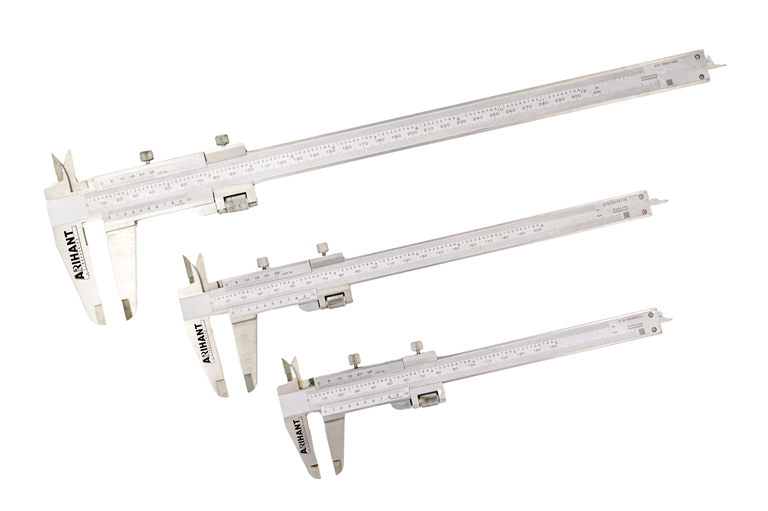

Vernier Caliper with Fine Adjustment

• New ergonomic design with finger rest.
• Fine-adjustment aids slider positioning.
• Allows step measurement.

MAKE MODEL RANGE ACCURACY L.C/RESOLUTION
Arihant Industries AI-VCF150 0-150 +/- 0.03 mm 0.02mm/0.001”
Arihant Industries AI-VCF200 0-200 +/- 0.03 mm 0.02mm/0.001”
Arihant Industries AI-VCF300 0-300 +/- 0.04 mm 0.02mm/0.001”
Arihant Industries AI-VCF450 0-450 +/- 0.05 mm 0.02mm/0.001”
Arihant Industries AI-VCF600 0-600 +/- 0.05 mm 0.02mm/0.001”
Arihant Industries AI-VCF1000 0-1000 +/- 0.07 mm 0.02mm/0.001”

Other Size and Type Available on Request.

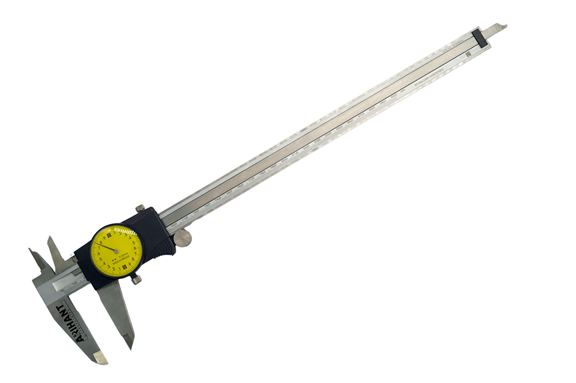

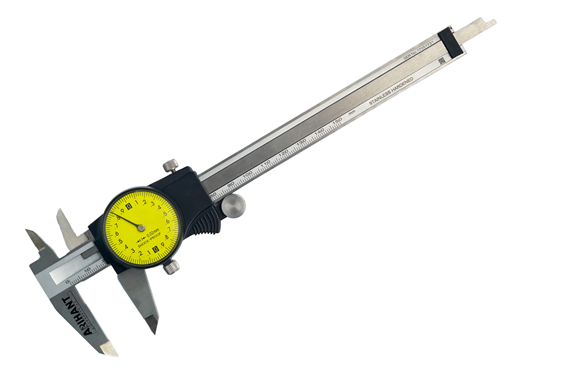

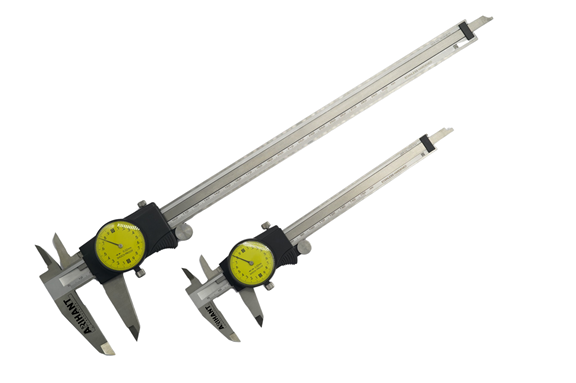

DIAL CALIPER

• New ergonomic design with finger rest.
• Newly designed dial movement for ultra-smooth sliding and high shock protection.
• Easy-to-read yellow dial or white dial.
• Large finger rest aids ease of use.
• Jaw tips are relieved for easy measurement of thin parts.
• Allows step measurement.

MAKE MODEL RANGE ACCURACY L.C/RESOLUTION
Arihant Industries AI-DC150 0-150 +/- 0.03 mm 0.02 mm
Arihant Industries AI-DCH150 0-150 +/- 0.02 mm 0.01 mm
Arihant Industries AI-DC200 0-200 +/- 0.03 mm 0.02 mm
Arihant Industries AI-DCH200 0-200 +/- 0.03 mm 0.01 mm
Arihant Industries AI-DC300 0-300 +/- 0.04 mm 0.02 mm
Arihant Industries AI-DCH300 0-300 +/- 0.04 mm 0.01 mm

Other Size and Type Available on Request.

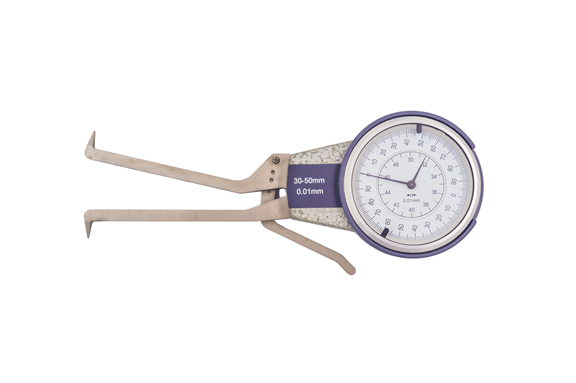

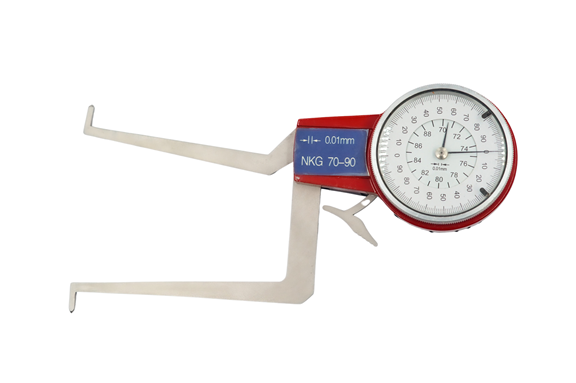

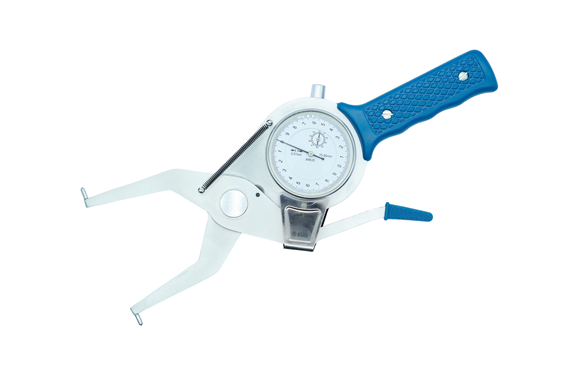

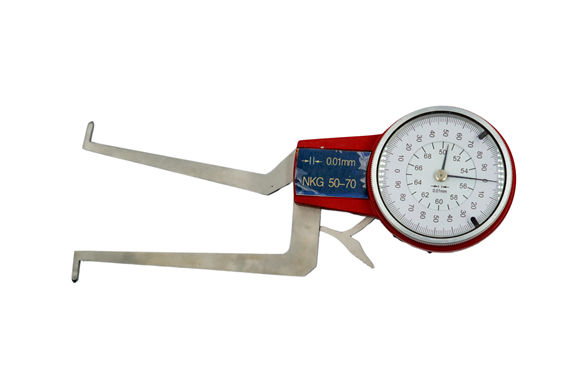

Inside Caliper Gauge

• New ergonomic design with finger rest.
• Inside caliper gauges are suited for measuring bores, internal groove and other hard to reach inside dimensions.
• Resolution: 0.01mm(Metric); 0.0005’’(inch)

TRAVEL 10 MM

MAKE MODEL RANGE ACCURACY
Arihant Industries AI-ICG1015 5-15 mm +/- 0.02 mm
Arihant Industries AI-ICG1020 10-20 mm +/- 0.02 mm
Arihant Industries AI-ICG1030 20-30 mm +/- 0.02 mm
Arihant Industries AI-ICG1040 30-40 mm +/- 0.02 mm
Arihant Industries AI-ICG1050 40-50 mm +/- 0.02 mm

TRAVEL 20 MM

MAKE MODEL RANGE ACCURACY
Arihant Industries AI-ICG2025 5-25 mm +/- 0.03 mm
Arihant Industries AI-ICG2030 10-30 mm +/- 0.03 mm
Arihant Industries AI-ICG2040 20-40 mm +/- 0.03 mm
Arihant Industries AI-ICG2050 30-50 mm +/- 0.03 mm
Arihant Industries AI-ICG2060 40-60 mm +/- 0.03 mm

Other Size and Type Available on Request.

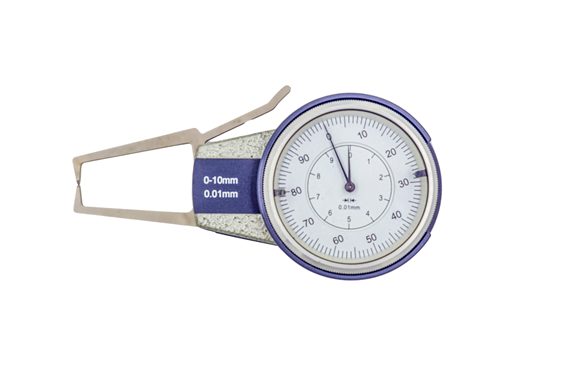

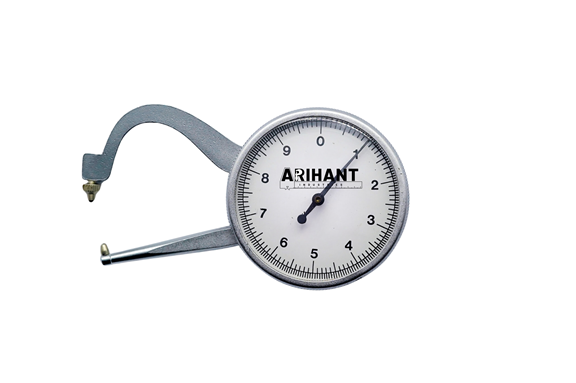

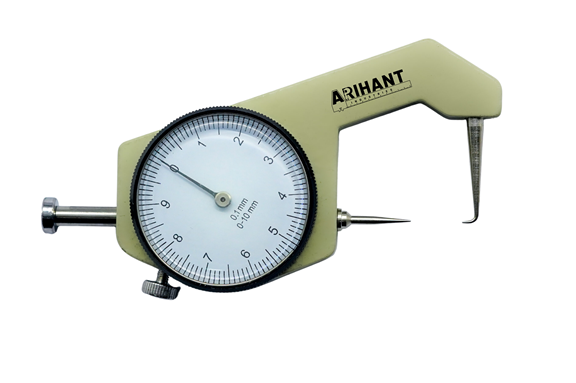

Outside Caliper Gauge

• New ergonomic design with finger rest.
• Outside caliper gauges are suited for measuring bores, internal groove and other hard to reach outside dimensions.
• Resolution: 0.01mm(Metric); 0.0005’’(inch)

TRAVEL 10 MM

MAKE MODEL RANGE ACCURACY
Arihant Industries AI-OCG1010 0-10 mm +/- 0.02 mm
Arihant Industries AI-OCG1020 10-20 mm +/- 0.02 mm
Arihant Industries AI-OCG1030 20-30 mm +/- 0.02 mm
Arihant Industries AI-OCG1040 30-40 mm +/- 0.02 mm
Arihant Industries AI-OCG1050 40-50 mm +/- 0.02 mm

TRAVEL 20 MM

MAKE MODEL RANGE ACCURACY
Arihant Industries AI-OCG2020 0-20 mm +/- 0.03 mm
Arihant Industries AI-OCG2030 10-30 mm +/- 0.03 mm
Arihant Industries AI-OCG2040 20-40 mm +/- 0.03 mm
Arihant Industries AI-OCG2050 30-50 mm +/- 0.03 mm
Arihant Industries AI-OCG2060 40-60 mm +/- 0.03 mm

Other Size and Type Available on Request.

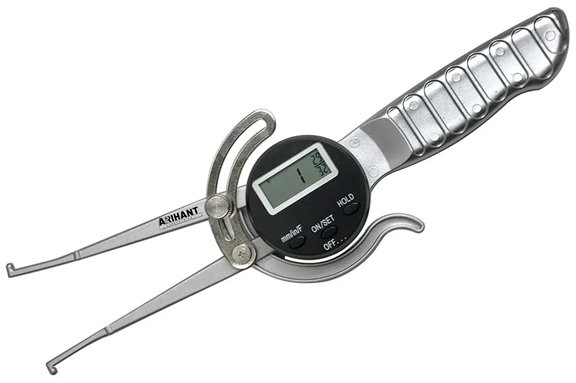

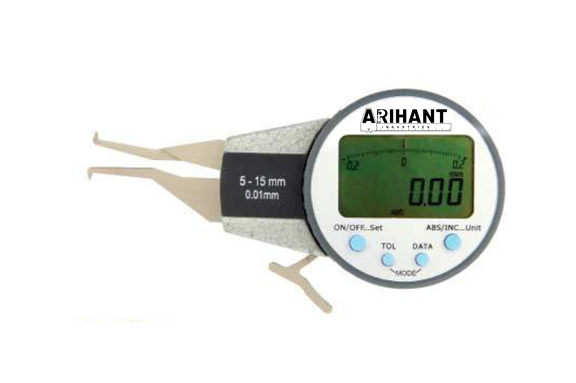

DIGITAL INSIDE CALIPER GAUGE

• New ergonomic design with finger rest.
• Electronic inside caliper gauges are suited for measuring bores, internal groove and other hard to reach inside dimensions.
• Dial rotates +/-170 deg. for use at versions angles.
• Display data is the origin data of absolute measurement after changing the battery.
• Digital display and analog display on LCD, automatic switch over.
• Analog display range: +/-20graduation.
• Digital resolution: 0.005mm(Metric); 0.0002’’(inch).

TRAVEL 10 MM

MAKE MODEL RANGE ACCURACY
Arihant Industries AI-DICG1015 5-15 mm +/- 0.02 mm
Arihant Industries AI-DICG1020 10-20 mm +/- 0.02 mm
Arihant Industries AI-DICG1030 20-30 mm +/- 0.02 mm
Arihant Industries AI-DICG1040 30-40 mm +/- 0.02 mm
Arihant Industries AI-DICG1050 40-50 mm +/- 0.02 mm

TRAVEL 20 MM

MAKE MODEL RANGE ACCURACY
Arihant Industries AI-DICG2025 5-25 mm +/- 0.03 mm
Arihant Industries AI-DICG2030 10-30 mm +/- 0.03 mm
Arihant Industries AI-DICG2040 20-40 mm +/- 0.03 mm
Arihant Industries AI-DICG2050 30-50 mm +/- 0.03 mm
Arihant Industries AI-DICG2060 40-60 mm +/- 0.03 mm

Other Size and Type Available on Request.

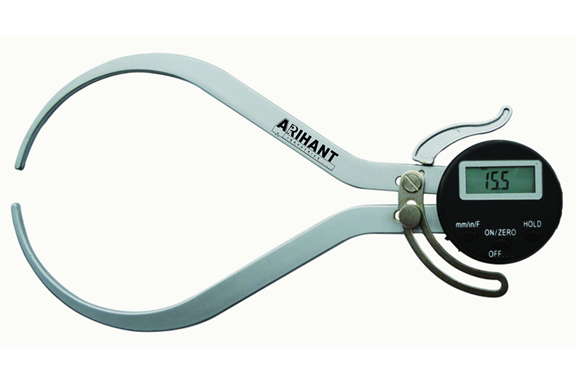

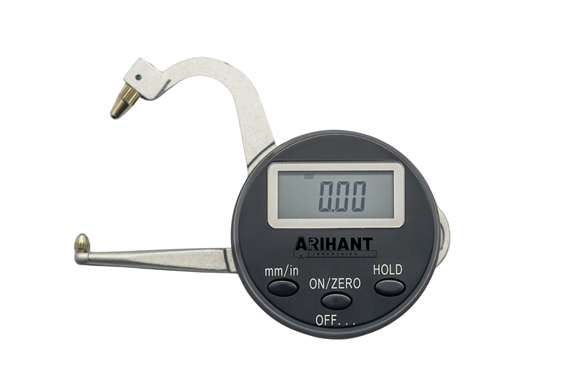

DIGITAL OUTSIDE CALIPER GAUGE

• New ergonomic design with finger rest.
• Electronic outside caliper gauges are suited for measuring bores, internal groove and other hard to reach outside dimensions.
• Dial rotates +/-170 deg. for use at versions angles.
• Display data is the origin data of absolute measurement after changing the battery.
• Digital display and analog display on LCD, automatic switch over.
• Analog display range: +/-20graduation.
• Digital resolution: 0.005mm(Metric); 0.0002’’(inch).

TRAVEL 10 MM

MAKE MODEL RANGE ACCURACY
Arihant Industries AI-DOCG1010 0-10 mm +/- 0.02 mm
Arihant Industries AI-DOCG1020 10-20 mm +/- 0.02 mm
Arihant Industries AI-DOCG1030 20-30 mm +/- 0.02 mm
Arihant Industries AI-DOCG1040 30-40 mm +/- 0.02 mm
Arihant Industries AI-DOCG1050 40-50 mm +/- 0.02 mm

TRAVEL 20 MM

MAKE MODEL RANGE ACCURACY
Arihant Industries AI-DOCG2020 0-20 mm +/- 0.03 mm
Arihant Industries AI-DOCG2030 10-30 mm +/- 0.03 mm
Arihant Industries AI-DOCG2040 20-40 mm +/- 0.03 mm
Arihant Industries AI-DOCG2050 30-50 mm +/- 0.03 mm
Arihant Industries AI-DOCG2060 40-60 mm +/- 0.03 mm

Other Size and Type Available on Request.

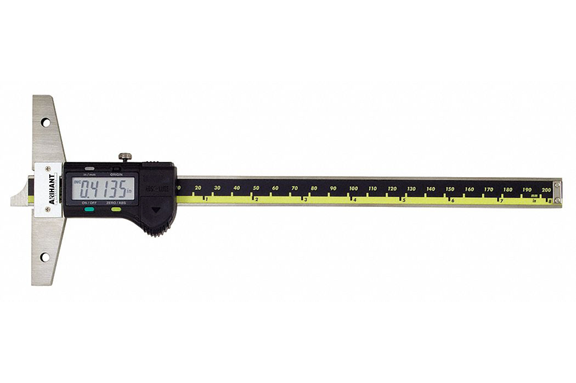

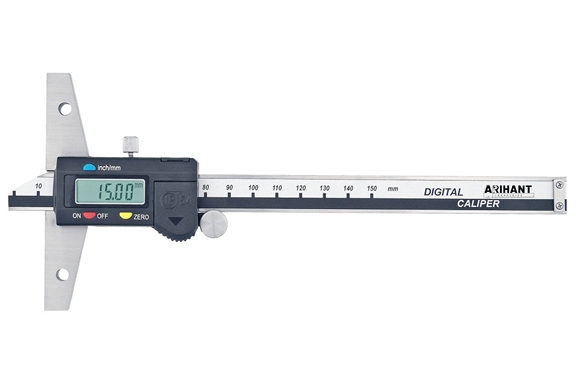

DIGITAL DEPTH CALIPER

• New ergonomic design with finger rest.
• Enables stable depth measurement with a resolution of 0.01mm.
• Sliding operation of models with the measuring ranges 150mm(6’’), 200mm(8’’) and 300mm(12’’) is smooth and comfortable.
• Optional longer extension bases are available.(Except for models with measuring ranges of 600mm, 750mm and 1000mm)

MAKE MODEL RANGE ACCURACY L.C/RESOLUTION
Arihant Industries AI-DDCC150 0-150 +/- 0.02 mm 0.01 mm
Arihant Industries AI-DDCC200 0-200 +/- 0.02 mm 0.01 mm
Arihant Industries AI-DDCC300 0-300 +/- 0.03 mm 0.01 mm

Other Size and Type Available on Request.

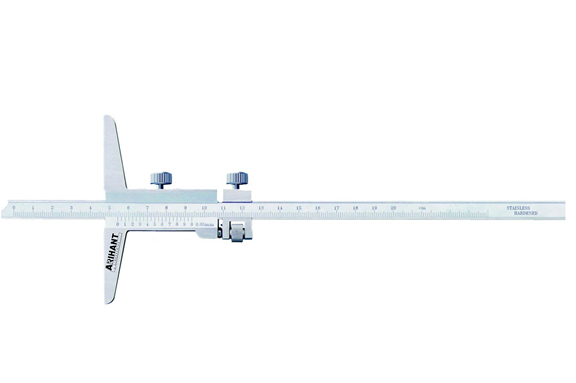

DEPTH CALIPER

• New ergonomic design with finger rest.
• Optional longer extension bases are available.(Except for models with measuring ranges of 600and 1000mm)

MAKE MODEL RANGE ACCURACY L.C/RESOLUTION
Arihant Industries AI-DCC150 0-150 +/- 0.03 mm 0.02 mm
Arihant Industries AI-DCC200 0-200 +/- 0.03 mm 0.02 mm
Arihant Industries AI-DCC300 0-300 +/- 0.04 mm 0.02 mm

Other Size and Type Available on Request.
