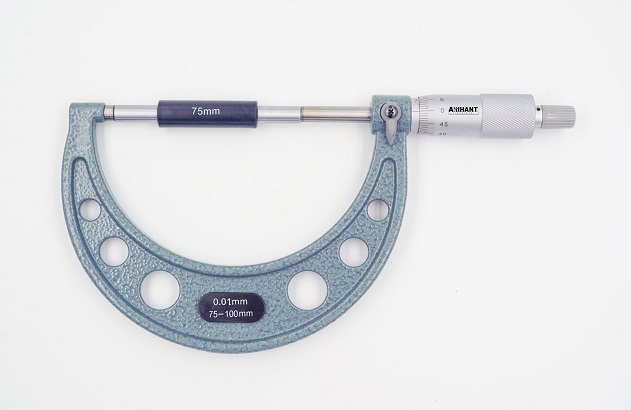

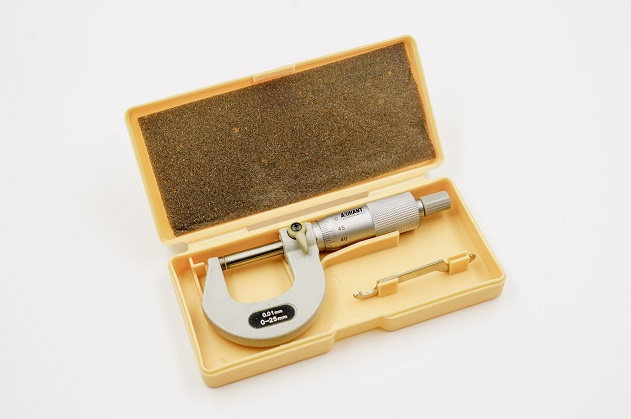

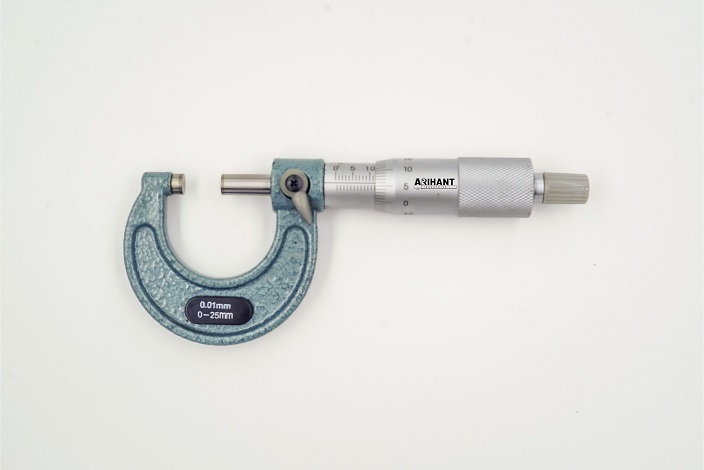

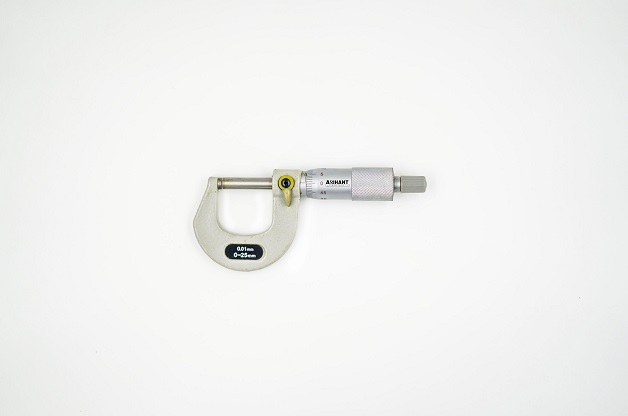

STANDARD OUTSIDE MICROMETER

  • • Baked-enamel-finished frame.
  • • Measuring faces: Carbide.
  • • Equipped with Ratchet Stop for constant measuring force.
MAKE MODEL RANGE (mm) LC/RESOLUTION (mm)
Arihant Industries AI-OSM25 0-25 0.01
Arihant Industries AI-OSM50 25-50 0.01
Arihant Industries AI-OSM75 50-75 0.01
Arihant Industries AI-OSM100 75-100 0.01
Arihant Industries AI-OSM125 100-125 0.01
Arihant Industries AI-OSM150 125-150 0.01
Arihant Industries AI-OSM175 150-175 0.01
Arihant Industries AI-OSM200 175-200 0.01
Arihant Industries AI-OSM225 200-225 0.01
Arihant Industries AI-OSM250 225-250 0.01
Arihant Industries AI-OSM275 250-275 0.01
Arihant Industries AI-OSM300 275-300 0.01
Arihant Industries AI-OSM100+ 0-100 0.01
Arihant Industries AI-OSM200+ 100-200 0.01
Arihant Industries AI-OSM150+ 0-150 0.01
Arihant Industries AI-OSM300+ 150-300 0.01
Arihant Industries AI-OSM400 300-400 0.01
Arihant Industries AI-OSM500 400-500 0.01
Arihant Industries AI-OSM600 500-600 0.01
Arihant Industries AI-OSM700 600-700 0.01
Arihant Industries AI-OSM800 700-800 0.01
Arihant Industries AI-OSM900 800-900 0.01
Arihant Industries AI-OSM1000 900-1000 0.01

Other Size and Type Available on Request.

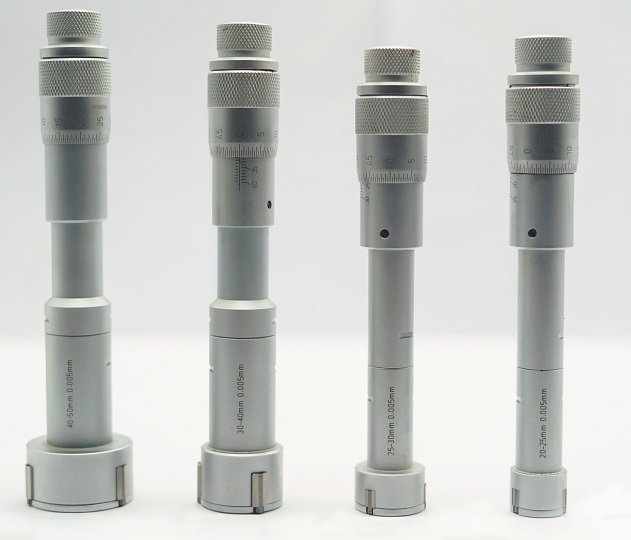

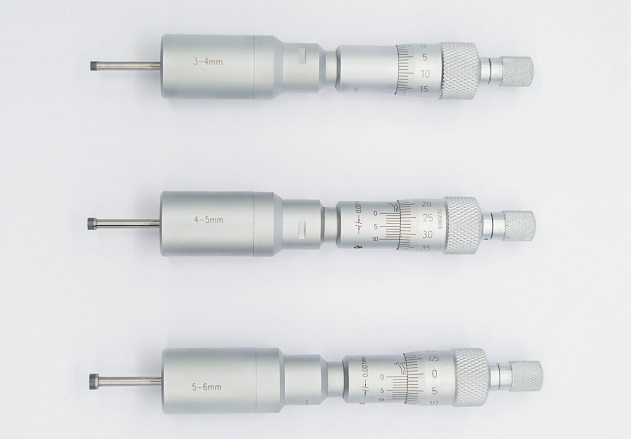

STANDARD INSIDE MICROMETER

  • • Wide range of inside diameter measurements possible by combining extension pipes and anvils with the micrometer head.
  • • Carbide measuring faces are available.
  • • The sleeve is rotated to adjust the index line position when setting to a length standard.
  • • An inside length standard is required for accurately setting the micrometer.
MAKE MODEL RANGE (mm) LC/RESOLUTION (mm)
Arihant Industries AI-ISM300 50-300 0.01
Arihant Industries AI-ISM500 50-500 0.01
Arihant Industries AI-ISM1000 50-1000 0.01
Arihant Industries AI-ISM1500 50-1500 0.01

Other Size and Type Available on Request.

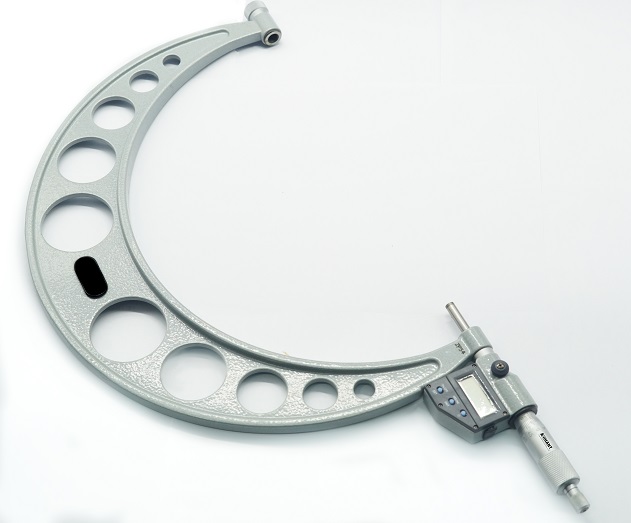

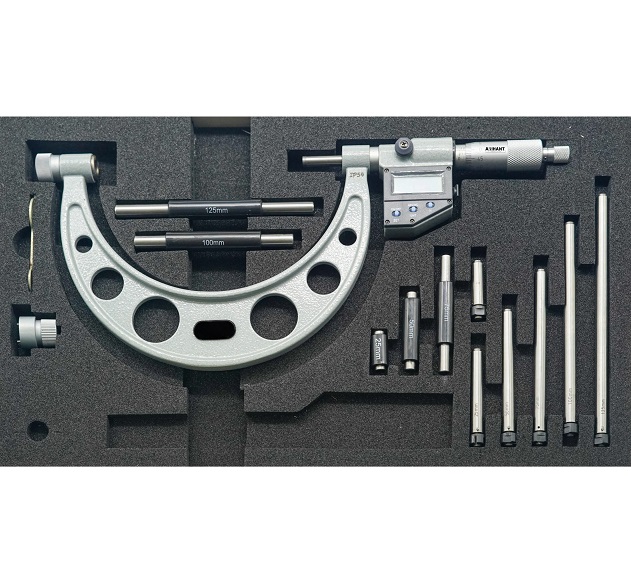

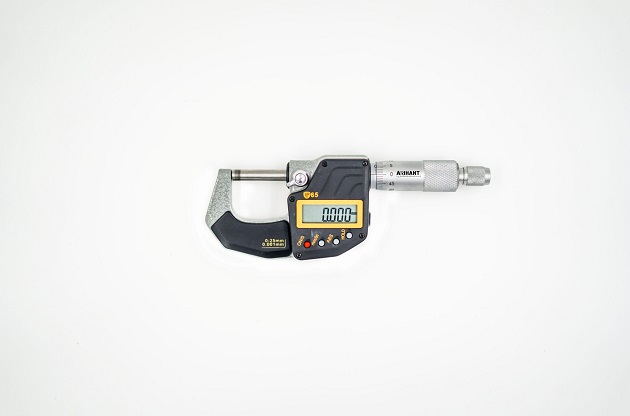

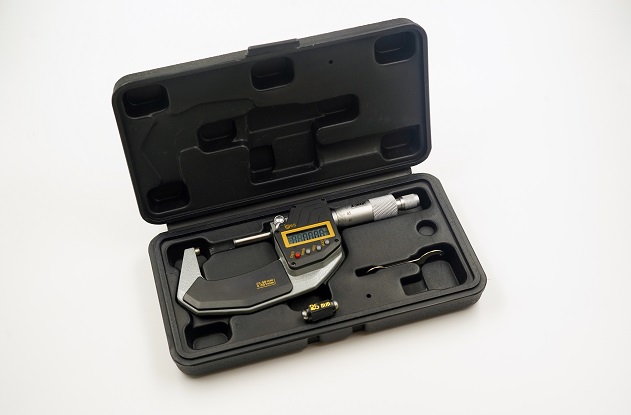

DIGITAL OUTSIDE MICROMETER

  • • World’s highest performing micrometer overall.
  • • Extended battery life of approximately 2.4 years.
  • • Ergonomic anti-slip frame cover and front panel for more comfortable hand-held measurements.
  • • Ratchet thimble provides better operability for one handed operation.
  • • Oil-resistant material used for all plastic parts.
  • • Material face: Carbide.
  • • Also available in IP65 Level, i.e, Coolant proof micrometer.
MAKE MODEL NO RANGE (mm) LC/RESOLUTION (mm)
Arihant Industries AI-DOSM25 0-25 0.001
Arihant Industries AI-DOSM50 25-50 0.001
Arihant Industries AI-DOSM75 50-75 0.001
Arihant Industries AI-DOSM100 75-100 0.001
Arihant Industries AI-DOSM125 100-125 0.001
Arihant Industries AI-DOSM150 125-150 0.001
Arihant Industries AI-DOSM175 150-175 0.001
Arihant Industries AI-DOSM200 175-200 0.001
Arihant Industries AI-DOSM225 200-225 0.001
Arihant Industries AI-DOSM250 225-250 0.001
Arihant Industries AI-DOSM275 250-275 0.001
Arihant Industries AI-DOSM300 275-300 0.001
Arihant Industries AI-DOSM100+ 0-100 0.001
Arihant Industries AI-DOSM200+ 100-200 0.001
Arihant Industries AI-DOSM150+ 0-150 0.001
Arihant Industries AI-DOSM300+ 150-300 0.001
Arihant Industries AI-DOSM400 300-400 0.001
Arihant Industries AI-DOSM500 400-500 0.001
Arihant Industries AI-DOSM600 500-600 0.001
Arihant Industries AI-DOSM700 600-700 0.001
Arihant Industries AI-DOSM800 700-800 0.001
Arihant Industries AI-DOSM900 800-900 0.001
Arihant Industries AI-DOSM1000 900-1000 0.001

Other Size and Type Available on Request.

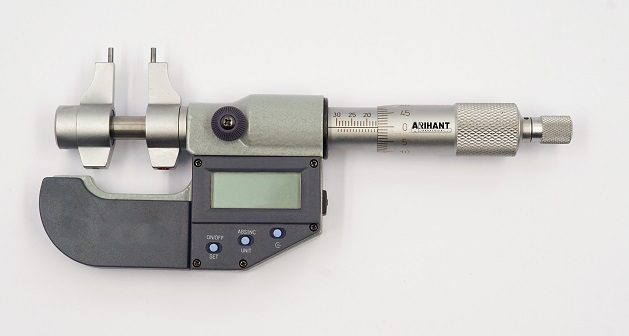

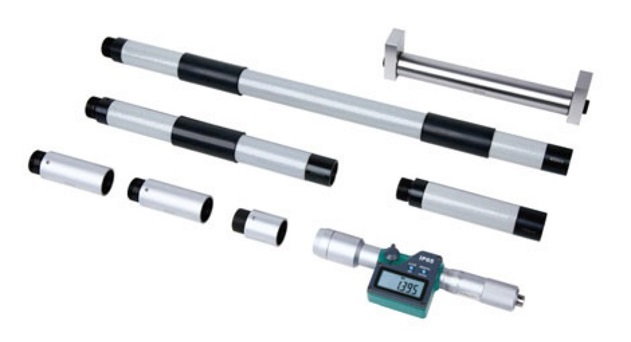

DIGITAL INSIDE MICROMETER

  • • Wide range of inside diameter measurements possible by combining extension pipes and anvils with the micrometer head.
  • • Carbide measuring faces are available.
  • • The sleeve is rotated to adjust the index line position when setting to a length standard.
  • • An inside length standard is required for accurately setting the micrometer.
  • • Also available in IP65 Level, i.e, Coolant proof micrometer.
MAKE MODEL RANGE (mm) RESOLUTION (mm)
Arihant Industries AI-DISM175 150-175 0.001
Arihant Industries AI-DISM1000 150-1000 0.001
Arihant Industries AI-DISM1500 150-1500 0.001
Arihant Industries AI-DISM2000 150-2000 0.001

Other Sizes and Types Available on Request.

BLUETOOTH MICROMETER

  • • Wide range of inside diameter measurements possible by combining extension pipes and anvils with the micrometer head.
  • • Carbide measuring faces are available.
  • • The sleeve is rotated to adjust the index line position when setting to a length standard.
  • • An inside length standard is required for accurately setting the micrometer.
  • • Also available in IP65 Level, i.e, Coolant proof micrometer.

Other Sizes and Types Available on Request.

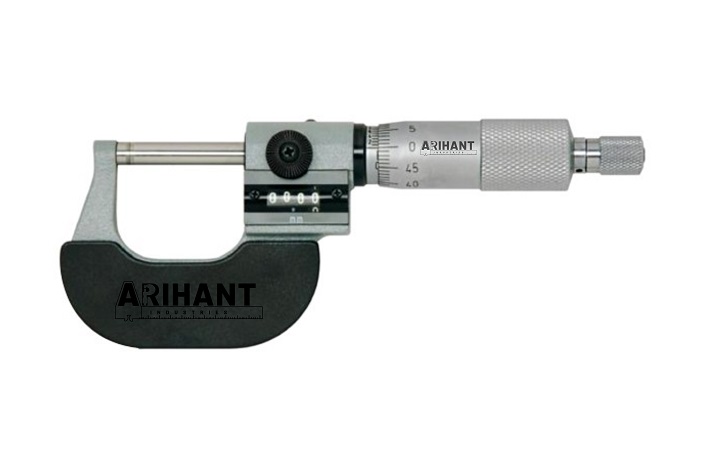

COUNTER DIGIT MICROMETER

  • • Wide range of inside diameter measurements possible by combining extension pipes and anvils with the micrometer head.
  • • Carbide measuring faces are available.
  • • The sleeve is rotated to adjust the index line position when setting to a length standard.
  • • An inside length standard is required for accurately setting the micrometer.
  • • Also available in IP65 Level, i.e, Coolant proof micrometer.

Other Sizes and Types Available on Request.
