VERNIER HEIGHT GAUGE DIGITAL HEIGHT GAUGE

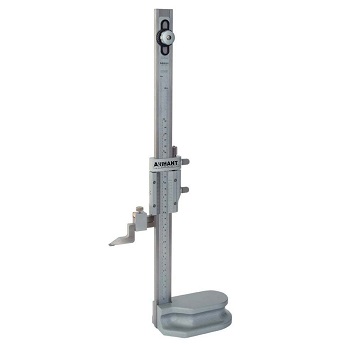

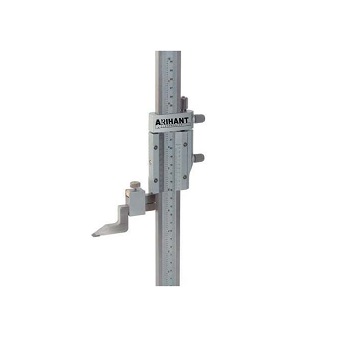

Vernier Height Gauge

• Fits comfortably in hand and moves easily on the surface plate.
• The main scale slides and clamps within the column for quick and convenient zero-setting.
• Large locking knobs are used both for the slider and fine adjustment clamps to make clamping easy and secure.
• Operability of the slider has been improved.
• Large main-scale engraving for fatigue-free working.

MAKE MODEL RANGE ACCURACY L.C/RESOLUTION
Arihant Industries AI-HG300 0-300 mm ±0.04 mm 0.02 mm
Arihant Industries AI-HG450 0-450 mm ±0.05 mm 0.02 mm
Arihant Industries AI-HG600 0-600 mm ±0.06 mm 0.02 mm
Arihant Industries AI-HG1000 0-1000 mm ±0.06 mm 0.02 mm

Other Sizes and Types Available on Request.

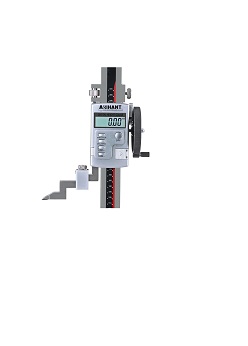

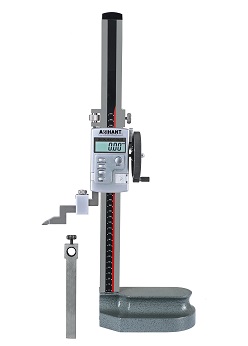

Digital Height Gauge

• Used for height measurements and scribing.
• Power ON/OFF.
• Zero-setting at any position, convenient for relative and absolute measure conversion.
• mm/inch conversion at any position Preset any reading at any position with handwheel and fine adjustment carriage.
• Carbide-tipped scriber facilitates fine scribing on work pieces.

MAKE MODEL RANGE ACCURACY L.C/RESOLUTION
Arihant Industries AI-DHG300 0-300 mm ±0.03 mm 0.01 mm
Arihant Industries AI-DHG600 0-600 mm ±0.05 mm 0.01 mm
Arihant Industries AI-DHG1000 0-1000 mm ±0.07 mm 0.01 mm

Other Sizes and Types Available on Request.
