STANDARD DIAL GAUGE DIGITAL DIAL GAUGE LEVER TYPE DIAL-HORIZONTAL TYPE THICKNESS GAUGE

STANDARD DIAL GAUGE

  • • Standard 0.01mm graduation dial gauges having a bezel with an outside diameter of 57mm. All types come with limit markers and a bezel clamp as standard.
  • • The bezel clamp and lifting lever(optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
  • • Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
  • • The spindle is made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
  • • A carbide contact point is used.
  • • The grand gear is made of stainless steel with high resistance to wear and deformation.
  • • Application of a hard coating on the surface of the crystal makes the gauge highly scratch and chemical resistant.
  • • We also provide Shock-proof and Jeweled Bearing.
MAKE MODEL NO RANGE (mm) L.C (mm)
Arihant Industries AI-DG1 1 0.001
Arihant Industries AI-DG10 10 0.01
Arihant Industries AI-DG20 20 0.01
Arihant Industries AI-DG30 30 0.01
Arihant Industries AI-DG50 50 0.01
Arihant Industries AI-DG80 80 0.01
Arihant Industries AI-DG100 100 0.01
Arihant Industries AI-DG150 150 0.05

Other Sizes and Types Available on Request.

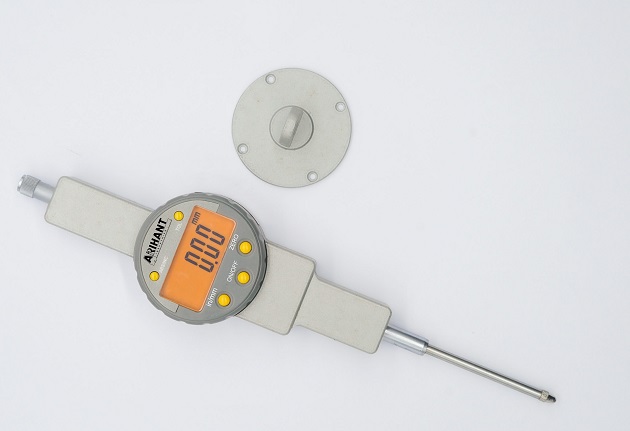

DIGITAL DIAL GAUGE

  • • Available in 0.01mm and 0.001mm.
MAKE MODEL RANGE (mm) ACCURACY (mm) L.C (mm)
Arihant Industries AI-DDG 12.7 12.7 +/- 0.02 0.01
Arihant Industries AI-DDG 25 25 +/- 0.02 0.01
Arihant Industries AI-DDG 50 50 +/- 0.04 0.01
Arihant Industries AI-DDG 12.7+ 12.7 +/- 0.002 0.001
Arihant Industries AI-DDG 25+ 25 +/- 0.003 0.001
Arihant Industries AI-DDG 50+ 50 +/- 0.005 0.001

Other Sizes and Types Available on Request.

LEVER TYPE DIAL-HORIZONTAL TYPE

  • • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • • No-clutch structure for automatic reversal of measuring direction.
  • • Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.
  • • The glare-free flat crystal face has a scratch-resistant coating.
  • • High sensitivity and quick response due to low-friction jeweled bearings.
MAKE MODEL RANGE (mm) ACCURACY L.C DIAL READING
Arihant Industries AI-LD40 0.8 0.008 0.001 0-40-0
Arihant Industries AI-LD70 0.14 0.003 0.001 0-70-0
Arihant Industries AI-LD70+ 0.14 0.004 0.001 0-70-0
Arihant Industries AI-LD100 0.20 0.004 0.002 0-100-0

Other Sizes and Types Available on Request.

THICKNESS GAUGE

  • • Dial thickness gauges can quickly measure the thickness of thin products such as paper and felt.
  • • Contact point and anvil are both made of ceramic(rust free) or steel.
  • • Integrated molding of the bezel and crystal ensures protection against water and oil penetration via the front face.
MAKE MODEL RANGE ACCURACY L.C REMARK

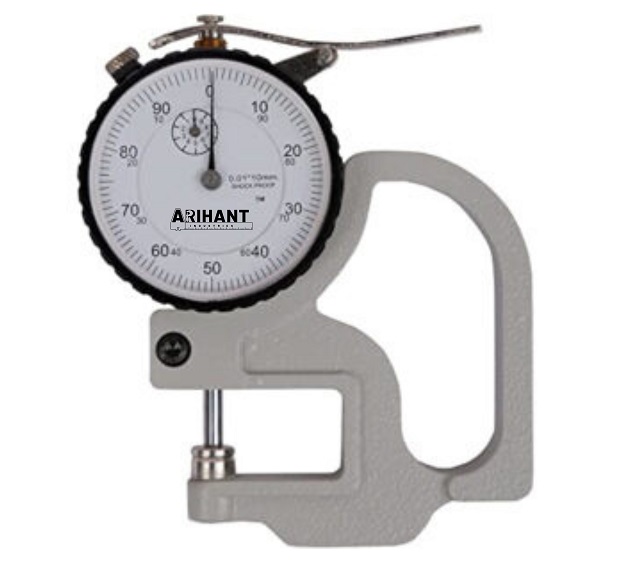

Arihant Industries AI-STG12 0-12 mm 0.005 0.01 mm Standard

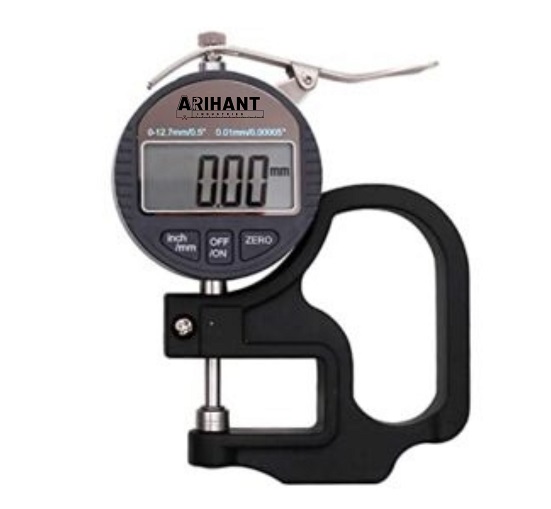

Arihant Industries AI-DTG12 0-12 mm 0.003 0.001 mm Digital

Other Sizes and Types Available on Request.
